Many visually impaired people identify currency notes by touching them. But as people grow older, their touch sensitivity may gradually decrease, making it difficult to recognise the correct denomination accurately. Imagine an elderly shopkeeper in a small roadside store who has weak eyesight and struggles to identify the money given by customers. In such situations, there is always a chance of confusion or receiving the wrong amount. To make this process easier, we have done a smart Indian currency recognition system using ESP32-CAM. The system captures the image of the Indian currency note, identifies the denomination within seconds using cloud processing, and announces the result through a speaker, helping visually impaired people handle money more confidently and independently. Let's dive in and see how to make the system from scratch. You can also check out similar AI projects and ESP32-Cam projects done previously here at Circuit Digest.
Components Required For Indian Currency Recognition Using ESP32-Cam
The components below are the ones that are used to build the ESP32-Cam-based Currency Recognition tutorial.
| S.No | Components | Purpose |
| 1. | ESP32-Cam | It is the main controller and is used to capture the images |
| 2. | Speaker | Used to know the denomination of the currency |
| 3. | Pam 8403 | Used for the audio amplification of the system |

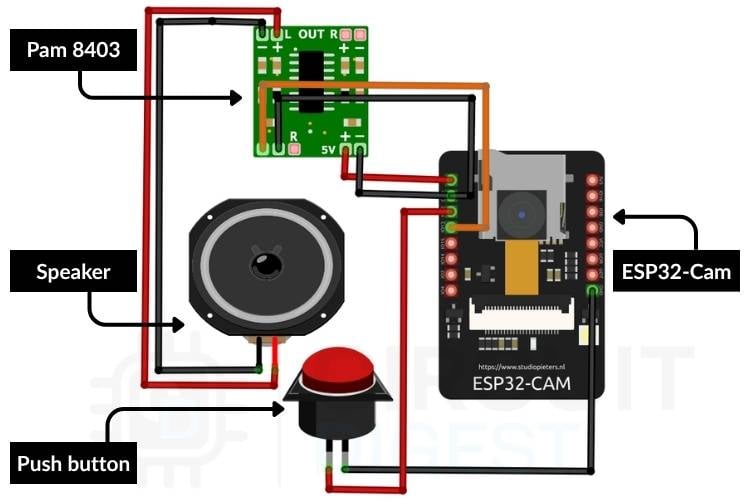

Circuit Diagram of Currency Recognition using ESP32-Cam
The circuit diagram below shows that the Pam8403, speaker, and pushbutton are connected to the ESP32-Cam. The Pam8403 is used for audio amplification, the push button is used to trigger the image capture, and the speaker is used to indicate what denomination it is.

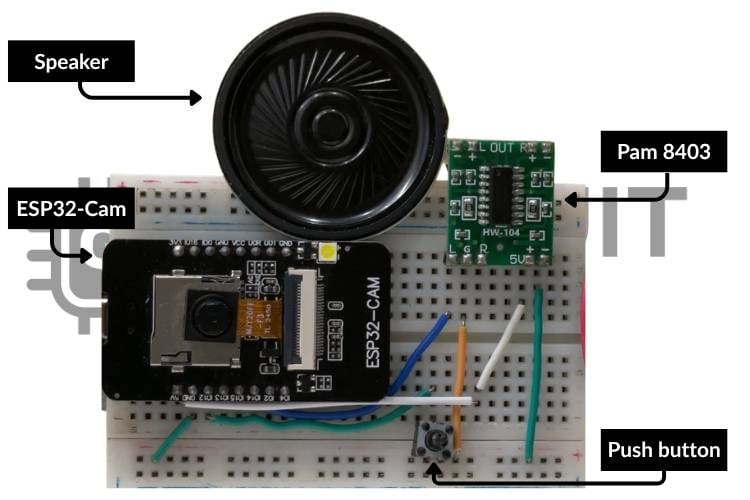

ESP32 Cam Indian Currency Recognition Hardware Connection
The Hardware connection shows that all components are connected to make the complete currency recognition setup. Mount the setup in a stand to make the system stable and easy to capture the images with clarity.
Indian Currency Recognition using ESP32-Cam Workflow
After the connections are made according to the circuit diagram. With the push button, we should take the picture of the indian currency or the real Indian currency like 20rs,100rs,500rs etc.,. After that, the picture is sent to the currency recognition API of the CircuitDigest Cloud. The cloud recognises and will send the results of the image back to the system. The system prints the denomination in the serial monitor. With the help of the TTS, the system reads what denomination it is and announces the value of the denomination in the speaker. We also built an interesting project related to object detection, spare some time and go through our Object Detection using ESP32-CAM and Edge Impulse project.
Step-by-Step Procedure for the Setup of a Currency Recognition System Using ESP32-Cam
Step 1:

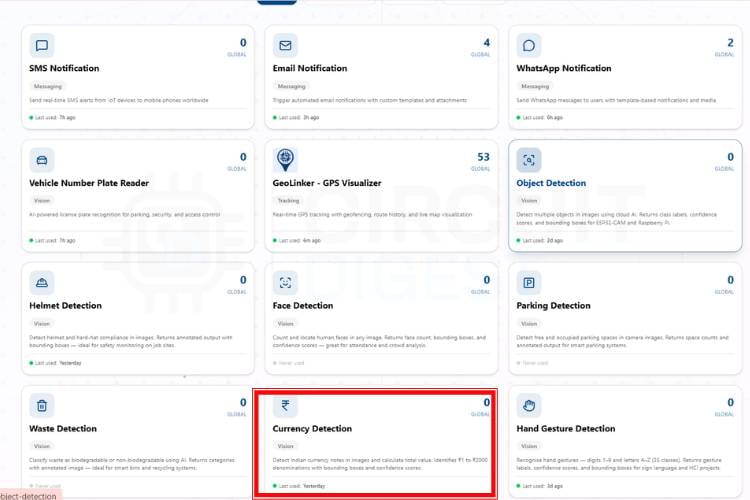

First, you need to make an account in the CircuitDigest Cloud. If you already have one, just get into the CircuitDigest Cloud website, scroll down, and there you will notice the currency recognition feature, click that, and enter.
Step 2:

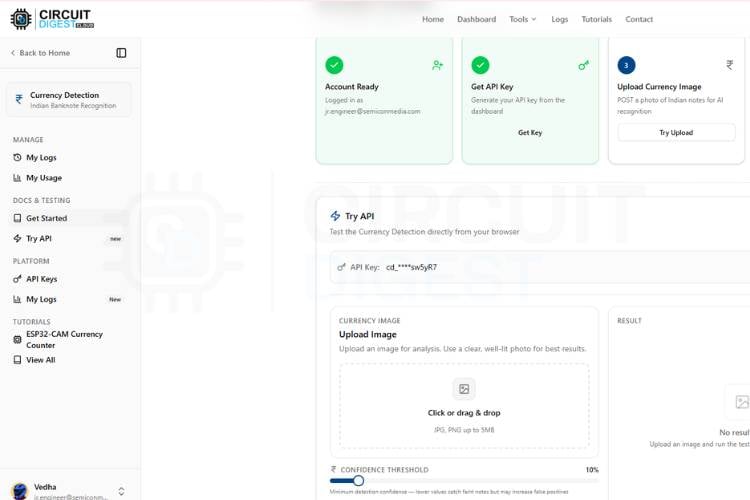

There, you will notice the try api section, various options like image, classes, confidence, result, and board selection section with its relevant codes. First, you can minimize and maximize the confidence level according to your needs because the confidence value sets the minimum probability threshold for currency recognition. A higher value results in more accurate recognition but may miss some, while a lower value detects more objects but with less certainty.
Step 3:

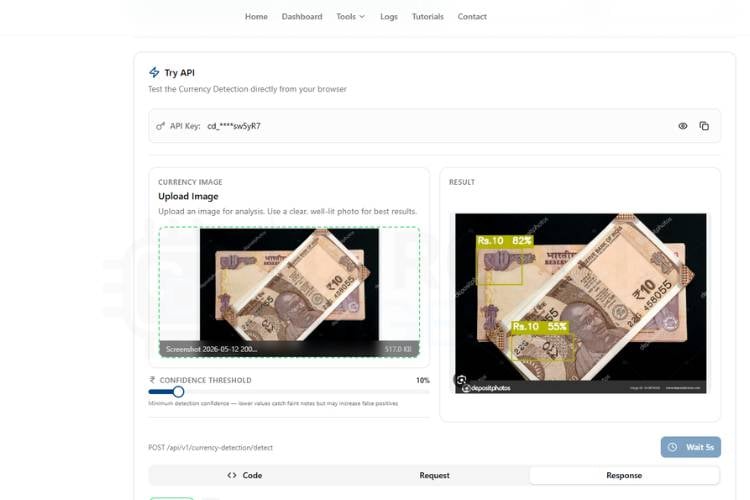

Now, to try without any microcontroller boards, you need to take a picture that is showing Indian Currency. Upload it to the image section and click run test. In a few seconds, you will get the result with confidence value and count.
Step 4:

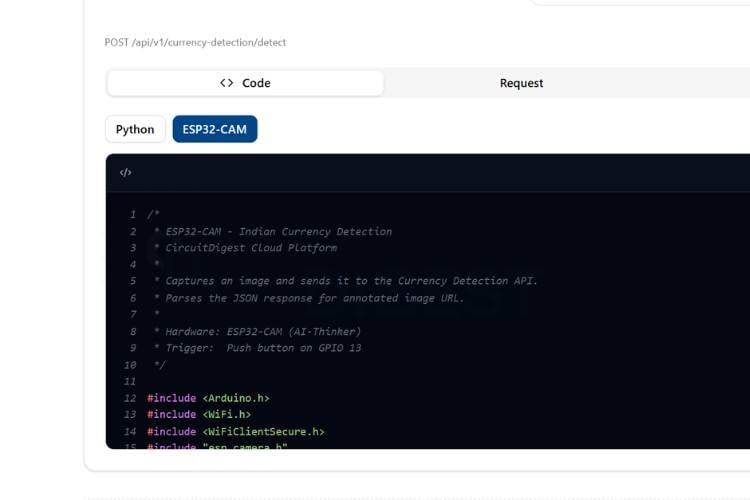

Below the page, you can see the microcontroller selection; select ESP32-Cam. Click the ESP32-Cam, and the website will give you the code. Just copy the code and paste the code in the Arduino IDE. In that copied code, change the Wi-Fi SSID, Password, and API Key, then upload the code. Now take any dummy picture from the internet that has indian currency, or you can test this in real time by taking a picture of the real indian currency.

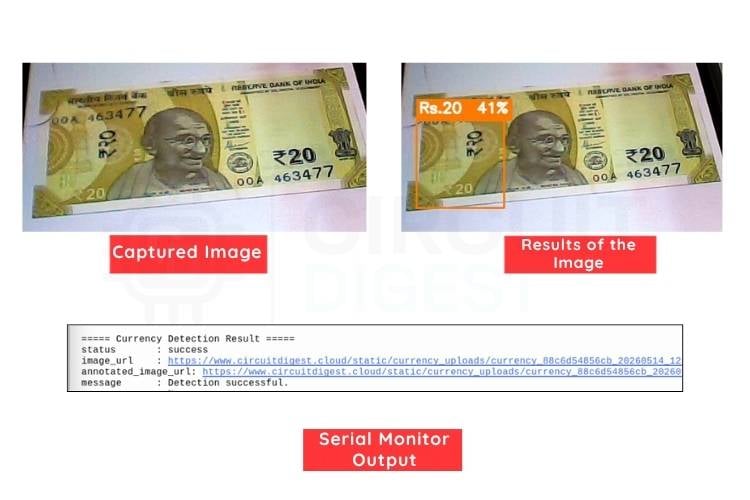

The image below shows the captured image from the ESP32-Cam. Along with it, you can see the detection results of the image and the denomination of the currency. Below that, the serial monitor displays the detection output, which includes the count and the confidence value for each identified currency.
ESP32-Cam Indian Currency Recognition Using Image Processing Code Explanation
The program first connects the ESP32-CAM to Wi-Fi and initialises the camera with image quality settings for better currency detection accuracy. After the push button is pressed, the ESP32-CAM captures a high-resolution image and stores it temporarily in memory. The captured image is then uploaded to the CircuitDigest Cloud API for AI-based currency recognition. Once the cloud processes the image, the detected denomination value is extracted from the API response. The program then downloads MP3 audio data using the Google Text-to-Speech service and plays the detected denomination through the speaker using audio libraries. Simultaneously, the integrated web server manages live camera streaming, dashboard updates, snapshot capture, and real-time monitoring functions.
const char* WIFI_SSID = "yourssidname";
const char* WIFI_PASS = "yourwifipassword";
const char* API_KEY = "yourapikey";
const char* serverName = "www.circuitdigest.cloud";
const char* serverPath = "/api/v1/currency-detection/detect";
const int serverPort = 443;This section stores the Wi-Fi credentials and CircuitDigest Cloud API details. The ESP32-CAM uses these credentials to connect to the internet and communicate with the cloud AI server for currency detection. The server path specifies the API endpoint where the captured image will be uploaded.
cfg.frame_size = FRAMESIZE_UXGA;
cfg.jpeg_quality = 8;
cfg.fb_count = 2;
cfg.fb_location = CAMERA_FB_IN_PSRAM;
sensor_t* s = esp_camera_sensor_get();
s->set_sharpness(s, 2);This part of the code improves the image quality of the ESP32-CAM. The resolution is set to UXGA (1600×1200) for detailed image capture, while JPEG quality is reduced for sharper images. The sharpness setting enhances the visibility of currency details, improving AI recognition accuracy.
client.printf(
"POST %s HTTP/1.1\r\n"
"Host: %s\r\n"
"X-API-Key: %s\r\n"
"Content-Type: multipart/form-data\r\n",
serverPath, serverName, API_KEY);
client.write(buf, len);This section sends the captured currency image to the CircuitDigest Cloud API using an HTTP POST request. The image is uploaded securely along with the API key, allowing the cloud AI to process the image and identify the denomination.
String path =
"/translate_tts?ie=UTF-8&q=" +
encoded +
"&tl=en&client=tw-ob";
WiFiClient httpClient;
httpClient.connect("translate.google.com", 80); It converts the detected denomination into speech using the Google Text-to-Speech service. The ESP32 sends the denomination text to Google servers and receives MP3 audio data, which will later be played through the speaker.
void detectCurrency() {
camera_fb_t* fb = esp_camera_fb_get();
String currency =
sendImageToAPI(fb->buf, fb->len);
playMP3(mp3Buf, mp3Len);
}This part of the code contains the main workflow of the project. The ESP32-CAM captures the image, sends it to the cloud AI for currency recognition, receives the denomination result, and finally announces the detected currency through the speaker using audio playback.
Demonstration Video
Troubleshooting for the Indian Currency Recognition System
Issue 1: API request timeout
Sometimes the image may not be sent to the server, and the program shows a timeout error. This usually happens due to a slow internet connection or an unstable network. Check whether the Raspberry Pi is connected to Wi-Fi or Ethernet properly. Increasing the timeout value in the code can also help solve this issue.
Issue 2: Invalid API key error
If the API key is wrong, the cloud server will reject the request and currency recognition will fail. This can happen if the key is copied incorrectly or contains extra spaces. Recheck the API key from the Circuit Digest Cloud account and paste it correctly in the code. Make sure there are no missing or extra characters.
Issue 3: Poor currency recognition accuracy
Sometimes the system may fail to detect the currency correctly because of poor lighting or unclear images. Low camera quality and wrong camera angle can also affect detection. Place the camera in a proper position with good lighting conditions. Increasing image resolution can also improve accuracy.
Advantages and limitations of the Indian Currency Recognition System with ESP32-Cam
The following table gives a clear idea about the limitations and the advantages of Currency recognition using ESP32-Cam
| S.No | Advantages | Limitations |
| 1. | Automatically detects Indian currencies in real time | Requires a stable internet connection for cloud processing |
| 2. | Consume less power, and installation is so simple | Recognition accuracy depends on camera quality |
| 3. | Reduces dependency on others while handling money | Poor lighting can affect recognition results |
| 4. | Can be upgraded with automatic note recognition in future | Cloud API usage may have daily or monthly limits |
| 5. | Easy to modify for different currencies or languages | Folded or damaged notes may reduce accuracy |
| 6. | Beginner-friendly AI project without ML training complexity | Background objects may sometimes affect recognition |
The key advantage of this setup we don't need to take any datasets manually or download them from the internet, don't need to label the objects, or create any model. With the help of the CircuitDigest Cloud, we are just flashing the code and using it like a readymade model. This saves time, and also with this time we can focus more on the other hardware modifications for future enhancements. This method will eliminate the use of ML training websites like Edge Impulse and TensorFlow Lite. Not only have we done another version of currency recognition, which is the ESP32-CAM Currency Recognition System, using Edge Impulse, go through the project for full details.
ESP32 Cam Indian Currency Recognition GitHub
The GitHub repository includes source code, circuit connections, and implementation details for building a real-time currency detection system using IoT and embedded vision technology.
Frequently Asked Questions
⇥ Does this system work without an internet connection?
No, this system requires an internet connection because the captured image is sent to the CircuitDigest Cloud API for Currency recognition processing. Without the internet, the recognition will not work.
⇥ How can I improve currency recognition accuracy?
You can improve accuracy by placing the camera in proper lighting conditions and using a clear camera angle. Increasing the image resolution and adjusting the confidence level also help in better detection results.
⇥ Can the system detect old or damaged Indian currency notes?
Yes, the system can detect slightly old or damaged notes if the important features of the currency are clearly visible. However, heavily folded or torn notes may reduce accuracy.
⇥ Can this project be used for currencies from other countries?
Yes, the project can be modified for other currencies if the cloud API supports those currency classes or if a custom model is integrated.
⇥ Why is cloud AI used instead of local AI processing?
The ESP32-CAM has limited memory and processing capability. Running advanced AI models locally is difficult. Cloud AI performs the heavy processing externally and sends only the result back to the ESP32-CAM.
⇥ Can this system detect fake currency?
No, this project only recognises the denomination of the currency note. Detecting counterfeit currency requires additional security-feature analysis and advanced AI models.
IoT Projects Using ESP32-CAM Module
This project collection demonstrates how the ESP32-CAM module can be used to build smart IoT applications with wireless connectivity and real-time image processing. The projects include a smart WiFi video doorbell, an automated attendance system, and a real-time image capture and email notification system.
Smart Video Doorbell using ESP32 Cam
Today, we will use an ESP32 and a camera to build a Smart Wi-Fi doorbell. This Smart doorbell can easily be powered by an AC socket, and whenever someone at the door presses the doorbell button, it will play a specific song on your phone and send a text message with a link to a video streaming page where you can see the person at the door from anywhere in the world.
Battery-Powered Attendance System Using Face Recognition on ESP32-CAM Board
So, in this tutorial, we are going to build an Attendance system using Face Recognition by leveraging the power of the ESP-32 CAM board. Along with the ESP32-CAM board, we will have an integrated power supply with 5-volt and 3.3-volt outputs that is powered by a 18650 cell.
Real-Time Image Capture and Send Email Using ESP32-CAM
In this project, we’ll put the ESP32-CAM to good use by capturing a clear image and sending it via email. For the sake of simplicity, we are going to use a push button to capture the image, but you can replace the button with any sensor, and it will come in very handy when you want to take a picture remotely and send it to your Email based on any event.
Complete Project Code
/*
* ESP32-CAM Currency Detection + Audio Announcement
* WITH WEB PREVIEW SERVER
*
* Changes from original:
* 1. Camera clarity: UXGA (1600×1200) with quality=8, plus sharpness/denoise tuning.
* 2. Web server on port 80:
* / → Dashboard with live MJPEG stream + last detection result
* /stream → Raw MJPEG stream (open in any browser tab or VLC)
* /capture → Single JPEG snapshot download
* /status → JSON with last currency result and heap info
* 3. Web server runs in a FreeRTOS task on Core 0.
* detectCurrency() still runs on Core 1 (loop).
* 4. During detectCurrency(), camera is deinit'd briefly for RAM —
* the stream task detects this and returns a 503 while detection runs.
*/
#include "esp_camera.h"
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include "soc/soc.h"
#include "soc/rtc_cntl_reg.h"
// Audio libraries
#include "AudioFileSourcePROGMEM.h"
#include "AudioGeneratorMP3.h"
#include "AudioOutputI2SNoDAC.h"
// Web server
#include <WebServer.h>
// ─── Config ────────────────────────────────────────────────────────
const char* WIFI_SSID = "Yourssidname";
const char* WIFI_PASS = "Yourwifiassword";
const char* API_KEY = "Yourapikey";
const char* serverName = "www.circuitdigest.cloud";
const char* serverPath = "/api/v1/currency-detection/detect";
const int serverPort = 443;
// ─── Pins ──────────────────────────────────────────────────────────
#define TRIGGER_BTN 12
#define SPEAKER_PIN 13
// ─── AI-Thinker ESP32-CAM Camera Pins ─────────────────────────────
#define PWDN_GPIO_NUM 32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 0
#define SIOD_GPIO_NUM 26
#define SIOC_GPIO_NUM 27
#define Y9_GPIO_NUM 35
#define Y8_GPIO_NUM 34
#define Y7_GPIO_NUM 39
#define Y6_GPIO_NUM 36
#define Y5_GPIO_NUM 21
#define Y4_GPIO_NUM 19
#define Y3_GPIO_NUM 18
#define Y2_GPIO_NUM 5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 23
#define PCLK_GPIO_NUM 22
// ─── Globals ───────────────────────────────────────────────────────
static unsigned long lastTrigger = 0;
static volatile bool cameraActive = true; // false while deinit'd for detection
static String lastCurrency = "None yet";
static AudioOutputI2SNoDAC* g_audioOut = nullptr;
static WebServer webServer(80);
// ─── Utility ───────────────────────────────────────────────────────
static void printHeap(const char* tag) {
Serial.printf("[HEAP] %s free=%u maxBlock=%u psram=%u\n",
tag,
(unsigned)ESP.getFreeHeap(),
(unsigned)ESP.getMaxAllocHeap(),
(unsigned)ESP.getFreePsram());
}
// ─── Camera Init ───────────────────────────────────────────────────
void initCamera() {
pinMode(PWDN_GPIO_NUM, OUTPUT);
digitalWrite(PWDN_GPIO_NUM, HIGH); delay(100);
digitalWrite(PWDN_GPIO_NUM, LOW); delay(100);
camera_config_t cfg = {};
cfg.ledc_channel = LEDC_CHANNEL_0; cfg.ledc_timer = LEDC_TIMER_0;
cfg.pin_d0=Y2_GPIO_NUM; cfg.pin_d1=Y3_GPIO_NUM; cfg.pin_d2=Y4_GPIO_NUM;
cfg.pin_d3=Y5_GPIO_NUM; cfg.pin_d4=Y6_GPIO_NUM; cfg.pin_d5=Y7_GPIO_NUM;
cfg.pin_d6=Y8_GPIO_NUM; cfg.pin_d7=Y9_GPIO_NUM;
cfg.pin_xclk=XCLK_GPIO_NUM; cfg.pin_pclk=PCLK_GPIO_NUM;
cfg.pin_vsync=VSYNC_GPIO_NUM; cfg.pin_href=HREF_GPIO_NUM;
cfg.pin_sscb_sda=SIOD_GPIO_NUM; cfg.pin_sscb_scl=SIOC_GPIO_NUM;
cfg.pin_pwdn=PWDN_GPIO_NUM; cfg.pin_reset=RESET_GPIO_NUM;
// Higher clock = sharper image, less motion blur
cfg.xclk_freq_hz = 20000000;
cfg.pixel_format = PIXFORMAT_JPEG;
if (psramFound()) {
// ── CLARITY UPGRADE ──────────────────────────────────────────
// UXGA = 1600×1200 (was VGA 640×480)
// quality 8 = very high (was 12); lower number = more detail
// fb_count 2 keeps a spare frame ready while one is being sent
cfg.frame_size = FRAMESIZE_UXGA;
cfg.jpeg_quality = 8;
cfg.fb_count = 2;
cfg.fb_location = CAMERA_FB_IN_PSRAM;
} else {
// No PSRAM fallback — SVGA is the best DRAM can handle reliably
cfg.frame_size = FRAMESIZE_SVGA;
cfg.jpeg_quality = 10;
cfg.fb_count = 1;
cfg.fb_location = CAMERA_FB_IN_DRAM;
}
esp_err_t err = esp_camera_init(&cfg);
if (err != ESP_OK) {
Serial.printf("Camera init failed: 0x%x — restarting\n", err);
delay(1000); ESP.restart();
}
// ── SENSOR TUNING FOR CLARITY ────────────────────────────────
sensor_t* s = esp_camera_sensor_get();
if (s) {
s->set_brightness(s, 1); // +1 brightness (range -2..2)
s->set_contrast(s, 2); // max contrast for crisp edges
s->set_saturation(s, 0); // neutral saturation
s->set_sharpness(s, 2); // max sharpness ← NEW
s->set_denoise(s, 1); // light denoise (reduces JPEG noise) ← NEW
s->set_whitebal(s, 1); // auto white balance on
s->set_awb_gain(s, 1); // AWB gain on ← NEW
s->set_exposure_ctrl(s, 1); // auto exposure on
s->set_gain_ctrl(s, 1); // auto gain on
s->set_aec2(s, 1); // AEC DSP on (better exposure in dark)
s->set_ae_level(s, 1); // +1 AE bias (slightly brighter)
s->set_aec_value(s, 300); // initial exposure hint ← NEW
s->set_agc_gain(s, 0); // start at gain 0 (let auto take over)
s->set_gainceiling(s, (gainceiling_t)6); // max gain 128× ← NEW
s->set_bpc(s, 1); // bad pixel correction on ← NEW
s->set_wpc(s, 1); // white pixel correction on ← NEW
s->set_raw_gma(s, 1); // gamma correction on ← NEW
s->set_lenc(s, 1); // lens correction (fixes vignetting) ← NEW
s->set_hmirror(s, 0);
s->set_vflip(s, 0);
// Special: OV2640 DCW (down-sample) off gives sharper large frames
s->set_dcw(s, 0); // ← NEW
}
cameraActive = true;
Serial.println("Camera initialized (UXGA, quality=8, full sensor tuning).");
}
// ─── HTTP body reader ──────────────────────────────────────────────
static size_t readBodyFixed(WiFiClientSecure& c, char* buf, size_t maxLen) {
size_t total = 0;
uint32_t t = millis();
while ((c.connected() || c.available()) && total < maxLen - 1) {
if (millis() - t > 8000) break;
if (!c.available()) { delay(10); continue; }
int n = c.read((uint8_t*)buf + total, maxLen - 1 - total);
if (n > 0) { total += n; t = millis(); }
}
buf[total] = '\0';
return total;
}
static void skipHeaders(WiFiClientSecure& c) {
while (c.connected()) {
String line = c.readStringUntil('\n');
if (line == "\r" || line.length() <= 1) break;
}
}
// ─── Phase 2: Currency API ─────────────────────────────────────────
static String sendImageToAPI(const uint8_t* buf, size_t len) {
WiFiClientSecure client;
client.setInsecure();
client.setTimeout(15);
Serial.println("Connecting to currency API...");
printHeap("before API connect");
int retries = 0;
while (!client.connect(serverName, serverPort)) {
Serial.printf("Connection failed (attempt %d)\n", ++retries);
if (retries >= 3) return "Connection Error";
delay(1500);
}
Serial.println("Connected!");
const char* bnd = "----ESP32Boundary";
char partHead[256];
int phLen = snprintf(partHead, sizeof(partHead),
"--%s\r\n"
"Content-Disposition: form-data; name=\"imageFile\"; filename=\"snap.jpg\"\r\n"
"Content-Type: image/jpeg\r\n\r\n", bnd);
char partTail[64];
int ptLen = snprintf(partTail, sizeof(partTail), "\r\n--%s--\r\n", bnd);
size_t contentLen = phLen + len + ptLen;
client.printf(
"POST %s HTTP/1.1\r\n"
"Host: %s\r\n"
"X-API-Key: %s\r\n"
"Content-Type: multipart/form-data; boundary=%s\r\n"
"Content-Length: %u\r\n"
"Connection: close\r\n\r\n",
serverPath, serverName, API_KEY, bnd, (unsigned)contentLen);
client.write((const uint8_t*)partHead, phLen);
for (size_t off = 0; off < len; off += 1024) {
size_t sz = min((size_t)1024, len - off);
client.write(buf + off, sz);
}
client.write((const uint8_t*)partTail, ptLen);
Serial.println("Image sent! Waiting for response...");
uint32_t t = millis();
while (!client.available() && millis() - t < 12000) delay(10);
skipHeaders(client);
static char respBuf[1024];
readBodyFixed(client, respBuf, sizeof(respBuf));
client.stop();
Serial.printf("API Response: %s\n", respBuf);
String currency = "";
auto findField = [&](const char* key) -> String {
const char* p = strstr(respBuf, key);
if (!p) return "";
p += strlen(key);
const char* e = strchr(p, '"');
if (!e) return "";
return String(p).substring(0, e - p);
};
currency = findField("\"label\":\"");
if (currency == "") currency = findField("\"class\":\"");
if (currency == "") currency = findField("\"class_name\":\"");
if (currency == "") currency = findField("\"denomination\":\"");
if (currency == "" && (strstr(respBuf,"no_currency_found") || strstr(respBuf,"no_detections")))
currency = "No currency detected";
if (currency == "") currency = "Unknown currency";
const char* rupeeVals[] = {"10","20","50","100","200","500","2000"};
for (auto v : rupeeVals) if (currency == v) { currency += " rupees"; break; }
return currency;
}
// ─── Phase 3: TTS Download ─────────────────────────────────────────
static uint8_t* downloadTTS(const String& text, size_t* outLen) {
*outLen = 0;
String encoded = text;
encoded.replace(" ", "+");
String path = "/translate_tts?ie=UTF-8&q=" + encoded + "&tl=en&client=tw-ob";
WiFiClient httpClient;
if (!httpClient.connect("translate.google.com", 80)) {
Serial.println("[TTS] HTTP connect failed"); return nullptr;
}
httpClient.printf(
"GET %s HTTP/1.1\r\nHost: translate.google.com\r\nUser-Agent: Mozilla/5.0\r\nConnection: close\r\n\r\n",
path.c_str());
uint32_t t = millis();
while (!httpClient.available() && millis() - t < 8000) delay(10);
size_t contentLength = 0;
while (httpClient.connected()) {
String line = httpClient.readStringUntil('\n'); line.trim();
if (line.startsWith("Content-Length:")) contentLength = (size_t)line.substring(16).toInt();
if (line.length() == 0) break;
}
size_t bufCap = contentLength > 0 ? contentLength + 64 : 131072;
uint8_t* mp3buf = nullptr;
if (psramFound() && ESP.getFreePsram() > bufCap + 65536)
mp3buf = (uint8_t*)ps_malloc(bufCap);
if (!mp3buf) {
Serial.printf("[TTS] Cannot allocate %u bytes\n", (unsigned)bufCap);
httpClient.stop(); return nullptr;
}
size_t total = 0;
t = millis();
while ((httpClient.connected() || httpClient.available()) && total < bufCap) {
if (millis() - t > 15000) break;
if (!httpClient.available()) { delay(5); continue; }
int n = httpClient.read(mp3buf + total, bufCap - total);
if (n > 0) { total += n; t = millis(); }
}
httpClient.stop();
if (total == 0) { Serial.println("[TTS] No MP3 data"); free(mp3buf); return nullptr; }
Serial.printf("[TTS] Downloaded %u bytes\n", (unsigned)total);
*outLen = total;
return mp3buf;
}
// ─── Phase 4: Playback ─────────────────────────────────────────────
static void playMP3(const uint8_t* mp3data, size_t mp3len) {
if (!mp3data || mp3len == 0) return;
printHeap("before playMP3");
AudioFileSourcePROGMEM* src = new AudioFileSourcePROGMEM(mp3data, mp3len);
AudioGeneratorMP3* mp3 = new AudioGeneratorMP3();
if (mp3->begin(src, g_audioOut)) {
while (mp3->isRunning()) { if (!mp3->loop()) mp3->stop(); }
Serial.println("[TTS] Playback complete.");
} else {
Serial.println("[TTS] MP3 begin() failed");
}
delete mp3; delete src;
}
// ═══════════════════════════════════════════════════════════════════
// WEB SERVER — handlers
// ═══════════════════════════════════════════════════════════════════
// ── Dashboard HTML ─────────────────────────────────────────────────
static const char DASHBOARD_HTML[] PROGMEM = R"rawhtml(
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width,initial-scale=1">
<title>ESP32-CAM Currency Detector</title>
<style>
@import url('https://fonts.googleapis.com/css2?family=Space+Mono:wght@400;700&family…');
:root{
--bg:#0d0f14;--surface:#161a23;--accent:#f0c040;--accent2:#4af0a0;
--text:#e8eaf0;--muted:#6b7280;--border:#2a2f3d;
}
*{box-sizing:border-box;margin:0;padding:0}
body{background:var(--bg);color:var(--text);font-family:'DM Sans',sans-serif;
min-height:100vh;display:flex;flex-direction:column;align-items:center;padding:24px 16px}
header{width:100%;max-width:780px;display:flex;justify-content:space-between;
align-items:center;margin-bottom:28px;border-bottom:1px solid var(--border);padding-bottom:16px}
h1{font-family:'Space Mono',monospace;font-size:1.1rem;letter-spacing:.06em;color:var(--accent)}
.dot{width:8px;height:8px;border-radius:50%;background:var(--accent2);
box-shadow:0 0 8px var(--accent2);animation:pulse 2s infinite}
@keyframes pulse{0%,100%{opacity:1}50%{opacity:.3}}
.card{width:100%;max-width:780px;background:var(--surface);border:1px solid var(--border);
border-radius:12px;overflow:hidden;margin-bottom:20px}
.stream-wrap{position:relative;width:100%;background:#000;aspect-ratio:4/3}
.stream-wrap img{width:100%;height:100%;object-fit:contain;display:block}
.overlay{position:absolute;top:10px;left:10px;background:rgba(0,0,0,.55);
backdrop-filter:blur(4px);padding:4px 10px;border-radius:6px;
font-family:'Space Mono',monospace;font-size:.7rem;color:var(--accent)}
.busy-banner{display:none;position:absolute;inset:0;background:rgba(13,15,20,.85);
align-items:center;justify-content:center;flex-direction:column;gap:12px}
.busy-banner.show{display:flex}
.spinner{width:40px;height:40px;border:3px solid var(--border);
border-top-color:var(--accent);border-radius:50%;animation:spin .8s linear infinite}
@keyframes spin{to{transform:rotate(360deg)}}
.result-panel{padding:20px 24px;display:flex;align-items:center;gap:16px}
.label{font-family:'Space Mono',monospace;font-size:.65rem;color:var(--muted);
text-transform:uppercase;letter-spacing:.1em;margin-bottom:4px}
.currency{font-size:1.8rem;font-weight:500;color:var(--accent);letter-spacing:.02em}
.actions{display:flex;gap:10px;margin-left:auto}
button{background:transparent;border:1px solid var(--border);color:var(--text);
padding:8px 18px;border-radius:8px;cursor:pointer;font-family:'DM Sans',sans-serif;
font-size:.85rem;transition:all .2s}
button:hover{border-color:var(--accent);color:var(--accent)}
.meta{display:flex;gap:24px;padding:12px 24px;border-top:1px solid var(--border);
font-family:'Space Mono',monospace;font-size:.65rem;color:var(--muted)}
.meta span b{color:var(--accent2)}
a.raw{color:var(--muted);text-decoration:none;font-size:.75rem}
a.raw:hover{color:var(--accent)}
</style>
</head>
<body>
<header>
<h1>▶ Currency Detector</h1>
<div style="display:flex;align-items:center;gap:8px;font-size:.78rem;color:var(--muted)">
<div class="dot" id="statusDot"></div>
<span id="statusText">Live</span>
</div>
</header>
<div class="card">
<div class="stream-wrap">
<img id="streamImg" src="/capture" alt="Camera feed">
<div class="overlay">CAM</div>
<div class="busy-banner" id="busyBanner">
<div class="spinner"></div>
<span style="font-family:'Space Mono',monospace;font-size:.75rem;color:var(--accent)">
Detecting…
</span>
</div>
</div>
<div class="result-panel">
<div>
<div class="label">Last Detection</div>
<div class="currency" id="resultText">—</div>
</div>
<div class="actions">
<button onclick="snap()">Snapshot</button>
<a class="raw" href="/stream" target="_blank">
<button>Open Stream ↗</button>
</a>
</div>
</div>
<div class="meta" id="metaBar">
<span>Heap: <b id="heapFree">—</b></span>
<span>PSRAM: <b id="psramFree">—</b></span>
<span>Uptime: <b id="uptime">—</b></span>
</div>
</div>
<script>
const streamImg = document.getElementById('streamImg');
const resultText = document.getElementById('resultText');
const busyBanner = document.getElementById('busyBanner');
let streaming = false;
// Start MJPEG stream
function startStream(){
streaming = true;
streamImg.src = '/stream?' + Date.now();
}
// Fallback: poll snapshot when stream breaks (e.g. during detection)
function snapPoll(){
streaming = false;
streamImg.src = '/capture?' + Date.now();
}
streamImg.onerror = () => {
if(streaming){ snapPoll(); setTimeout(startStream, 3000); }
};
startStream();
// Poll /status every 1.5 s
async function pollStatus(){
try {
const r = await fetch('/status');
const d = await r.json();
resultText.textContent = d.currency || '—';
document.getElementById('heapFree').textContent = fmtBytes(d.heap_free);
document.getElementById('psramFree').textContent = fmtBytes(d.psram_free);
document.getElementById('uptime').textContent = fmtTime(d.uptime_s);
if(d.busy){
busyBanner.classList.add('show');
if(streaming){ snapPoll(); }
} else {
busyBanner.classList.remove('show');
if(!streaming){ startStream(); }
}
} catch(e){}
}
setInterval(pollStatus, 1500);
pollStatus();
function snap(){
const a = document.createElement('a');
a.href = '/capture?' + Date.now();
a.download = 'snapshot.jpg';
a.click();
}
function fmtBytes(b){ if(!b) return '—'; if(b>1048576) return (b/1048576).toFixed(1)+'MB'; return (b/1024).toFixed(0)+'KB'; }
function fmtTime(s){ if(!s) return '—'; const h=Math.floor(s/3600),m=Math.floor((s%3600)/60),sec=s%60; return (h?h+'h ':'')+m+'m '+sec+'s'; }
</script>
</body>
</html>
)rawhtml";
// ── Handler: dashboard ─────────────────────────────────────────────
void handleRoot() {
webServer.send_P(200, "text/html", DASHBOARD_HTML);
}
// ── Handler: MJPEG stream ──────────────────────────────────────────
void handleStream() {
if (!cameraActive) {
webServer.send(503, "text/plain", "Camera busy during detection");
return;
}
WiFiClient client = webServer.client();
client.print(
"HTTP/1.1 200 OK\r\n"
"Content-Type: multipart/x-mixed-replace; boundary=frame\r\n"
"Cache-Control: no-cache\r\n"
"Connection: close\r\n\r\n");
while (client.connected()) {
if (!cameraActive) break; // detection started — bail out
camera_fb_t* fb = esp_camera_fb_get();
if (!fb) { delay(30); continue; }
client.printf(
"--frame\r\n"
"Content-Type: image/jpeg\r\n"
"Content-Length: %u\r\n\r\n", (unsigned)fb->len);
client.write(fb->buf, fb->len);
client.print("\r\n");
esp_camera_fb_return(fb);
delay(50); // ~20 fps cap — raise to 33ms for ~30 fps if your network handles it
}
}
// ── Handler: single snapshot ───────────────────────────────────────
void handleCapture() {
if (!cameraActive) {
webServer.send(503, "text/plain", "Camera busy");
return;
}
camera_fb_t* fb = esp_camera_fb_get();
if (!fb) { webServer.send(500, "text/plain", "Capture failed"); return; }
webServer.sendHeader("Content-Disposition", "inline; filename=\"snap.jpg\"");
webServer.sendHeader("Cache-Control", "no-cache");
webServer.send_P(200, "image/jpeg", (const char*)fb->buf, fb->len);
esp_camera_fb_return(fb);
}
// ── Handler: JSON status ───────────────────────────────────────────
void handleStatus() {
char buf[256];
snprintf(buf, sizeof(buf),
"{\"currency\":\"%s\","
"\"busy\":%s,"
"\"heap_free\":%u,"
"\"psram_free\":%u,"
"\"uptime_s\":%lu}",
lastCurrency.c_str(),
cameraActive ? "false" : "true",
(unsigned)ESP.getFreeHeap(),
(unsigned)ESP.getFreePsram(),
millis() / 1000UL);
webServer.send(200, "application/json", buf);
}
// ── Web server task (Core 0) ───────────────────────────────────────
static void webServerTask(void*) {
webServer.on("/", handleRoot);
webServer.on("/stream", handleStream);
webServer.on("/capture", handleCapture);
webServer.on("/status", handleStatus);
webServer.begin();
Serial.println("[WEB] Server started on port 80");
for (;;) { webServer.handleClient(); delay(2); }
}
// ═══════════════════════════════════════════════════════════════════
// DETECTION FLOW
// ═══════════════════════════════════════════════════════════════════
void detectCurrency() {
printHeap("detectCurrency start");
// Phase 1: Capture
camera_fb_t* fb = esp_camera_fb_get();
if (fb) esp_camera_fb_return(fb);
delay(250);
fb = esp_camera_fb_get();
if (!fb) { Serial.println("Capture failed!"); return; }
size_t imgLen = fb->len;
Serial.printf("Frame: %u bytes\n", (unsigned)imgLen);
uint8_t* imgBuf = nullptr;
if (psramFound() && ESP.getFreePsram() > imgLen + 65536)
imgBuf = (uint8_t*)ps_malloc(imgLen);
if (!imgBuf && ESP.getMaxAllocHeap() > imgLen + 32768)
imgBuf = (uint8_t*)malloc(imgLen);
if (!imgBuf) {
Serial.println("No memory for frame!");
esp_camera_fb_return(fb);
return;
}
memcpy(imgBuf, fb->buf, imgLen);
esp_camera_fb_return(fb);
// Deinit camera — signal web task to stop streaming
cameraActive = false;
delay(50); // let any in-flight stream handler finish its current frame
esp_camera_deinit();
delay(150);
printHeap("after cam deinit");
// Phase 2: API
String currency = sendImageToAPI(imgBuf, imgLen);
free(imgBuf);
lastCurrency = currency;
Serial.println("=== Detection Result ===");
Serial.println(currency);
Serial.println("========================");
printHeap("after API, before TTS download");
// Phase 3: Download TTS
size_t mp3Len = 0;
uint8_t* mp3Buf = downloadTTS(currency, &mp3Len);
// Phase 4: Play
if (mp3Buf) { playMP3(mp3Buf, mp3Len); free(mp3Buf); }
else { Serial.println("[TTS] Skipping audio (download failed)"); }
// Reinit camera and re-enable stream
initCamera();
cameraActive = true;
printHeap("detectCurrency end");
}
// ═══════════════════════════════════════════════════════════════════
// SETUP / LOOP
// ═══════════════════════════════════════════════════════════════════
void setup() {
WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);
Serial.begin(115200);
delay(500);
pinMode(TRIGGER_BTN, INPUT_PULLUP);
initCamera();
g_audioOut = new AudioOutputI2SNoDAC();
g_audioOut->SetPinout(14, 15, SPEAKER_PIN);
WiFi.mode(WIFI_STA);
WiFi.setSleep(false);
WiFi.begin(WIFI_SSID, WIFI_PASS);
Serial.print("Connecting to WiFi");
while (!WiFi.isConnected()) { delay(500); Serial.print("."); }
Serial.printf("\nConnected: %s\n", WiFi.localIP().toString().c_str());
// Print the URL prominently
Serial.println("─────────────────────────────────────────");
Serial.printf(" WEB PREVIEW → http://%s\n", WiFi.localIP().toString().c_str());
Serial.printf(" MJPEG STREAM → http://%s/stream\n", WiFi.localIP().toString().c_str());
Serial.println("─────────────────────────────────────────");
configTime(19800, 0, "pool.ntp.org", "time.nist.gov");
Serial.print("Syncing time");
for (int i = 0; i < 20 && time(nullptr) < 100000; i++) { delay(500); Serial.print("."); }
Serial.println(time(nullptr) > 100000 ? "\nTime synced!" : "\nTime sync timeout");
// Start web server on Core 0 (loop runs on Core 1 by default)
xTaskCreatePinnedToCore(webServerTask, "WebSrv", 8192, nullptr, 1, nullptr, 0);
printHeap("setup complete");
Serial.println("Ready — press button to detect currency.");
}
void loop() {
if (digitalRead(TRIGGER_BTN) == LOW && millis() - lastTrigger > 2000) {
lastTrigger = millis();
delay(150);
Serial.println("Button pressed! Detecting currency...");
detectCurrency();
}
delay(10);
}
