Call and Text using Raspberry Pi and GSM Module

raspberry pi

BySaddam 13

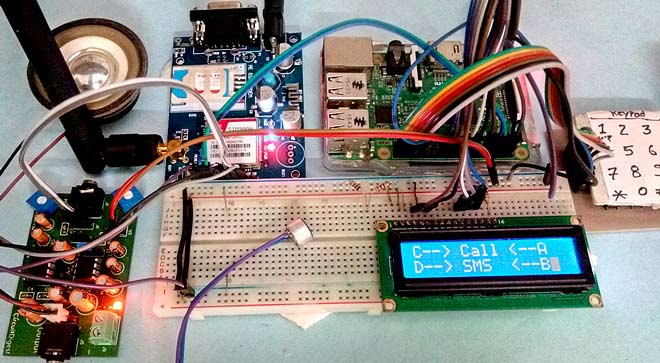

Call and Message using Raspberry Pi and GSM Module

In this DIY project we are going to build a Simple Mobile Phone using Raspberry Pi, in which GSM Module is used to Make or answer the Call and send or read the SMS, and also this Raspberry Pi phone has Mic and Speaker to talk over this PhoneThis project will also serve as a proper interfacing of GSM Module with Raspberry Pi, with all the Code needed to operate any Phone’s basic functions. Previously we have built same kind of Simple Mobile Phone using Arduino, check here



Required Components:

  • Raspberry Pi 3 (any model)
  • GSM Module
  • 16x2 LCD
  • 4x4 Keypad (user may use membrane keypad)
  • 10k pot
  • Breadboard
  • Connecting jumper wire
  • Power supply
  • Speaker
  • MIC
  • SIM Card
  • Speaker
  • Audio Amplifier Circuit (Optional)

GSM_Module_SIM900A



Working Explanation:

In this Raspberry Pi Mobile Phone Project, we have used GSM module and Raspberry Pi 3 to control whole system’s features and interfacing all the components in this system. A 4x4 Alphanumeric Keypad is used for taking all kind of inputs like: Enter mobile number, type messages, make a call, receive a call, send SMS, read SMS etc. GSM Module SIM900A is used to communicate with the network for calling and messaging purpose. We have also interfaced a MIC and a Speaker for Voice Call and Ring sound and a 16x2 LCD is used for showing messages, instructions and alerts.

Alphanumeric is a method to enter numbers and alphabets both by using same keypad. In this method, we have interfaced 4x4 keypad with Raspberry Pi and written Code for accepting alphabets too, check the Code in Code section below.

Raspberry-pi-mobile-phone-block-diagram

Working of this project is easy. All the features will be performed by Using Alphanumeric Keypad. Check the Full code and a Demo Video below to properly understand the process. Here we are going to explain all the four features of the projects below.



Explaining Four Features of Raspberry Pi Mobile Phone:

1. Make a Call:

To make a call by using our Raspberry Pi based Phone, we have to press ‘C’ and then need to enter the Mobile Number on which we want to make a call. Number will be entered by using alphanumeric keypad. After entering the number we again need to press ‘C’. Now Raspberry Pi will process for connecting the call to the entered number by using AT command:

ATDxxxxxxxxxx; <Enter>     where xxxxxxxxx is entered Mobile Number.



2. Receive a Call:

Receiving a call is very easy. When someone is calling to your system SIM number, which is there in GSM Module, then your system will show ‘Incoming…’ message over the LCD with incoming number of caller. Now we just need to Press ‘A’ to attend this call. When we press ‘A’, Raspberry Pi will send given command to GSM Module:

ATA <enter>



3. Send SMS:

When we want to send a SMS using our Raspberry Pi based Phone, then we need to Press ‘D’. Now System will ask for Recipient Number, means ‘to whom’ we want to send SMS. After entering the number we need to again press ‘D’ and now LCD asks for message. Now we need to type the message, like we enter in normal mobile, by using keypad and then after entering the message we need to press the ‘D’ again to send SMS.  To Send SMS Raspberry Pi sends given command:

AT+CMGF=1 <enter>
AT+CMGS=”xxxxxxxxxx” <enter>     where: xxxxxxxxxx is entered mobile number

And send 26 to GSM to send SMS.



4. Receive and Read SMS:

This feature is also simple. In this, GSM will receive SMS and stores it in SIM card. And Raspberry Pi continuously monitors the received SMS indication over UART. Whenever there is a new message LCD will show “New message” text and then we just need to Press ‘B’, to read the SMS. SMS Received indication is:

+CMTI: “SM”,6  Where 6 is message location where it stored in SIM card.



When Raspberry Pi gets this ‘SMS received’ indication then it extracts SMS storing location and sends command to GSM to read the received SMS. And show a ‘New Message’ text over the LCD.

AT+CMGR=<SMS stored location><enter>

Now GSM sends stored message to Raspberry Pi and then Raspberry Pi extract main SMS and display it over the LCD.

Call-and-message-uisng-Raspberry-pi-and-gsm-module

Note: There is no coding for MIC and Speaker.

Check the Full code and a Demo Video below to properly understand the process.



Circuit Diagram and Explanation:

mobile-phone-using-Raspberry-pi-and-gsm-module-circuit

16x2 LCD pins RS, EN, D4, D5, D6, and D7 are connected with GPIO pin number 18, 23, 24, 25, 8 and 7 of Raspberry Pi respectively. GSM Module’s Rx and Tx pin is directly connected to Raspberry Pi’s pin Tx and Rx respectively (Ground of Raspberry Pi and GSM must be connected with each other). 4x4 keypad Row pins R1, R2, R3, R4 are directly linked to GPIO pin number 12,16, 20, 21 of Raspberry Pi and Column pin of keypad C1, C2, C3, C4 are linked with GPIO pin number 26, 19, 13 and 6 of Raspberry Pi. MIC is directly connected to mic+ and mic- of GSM Module and the speaker is connected at sp+ and sp- pins for GSM Module with the help of this Audio Amplifier Circuit, to amplify the output audio. This Audio Amplifier circuit is optional and you can directly connect the speaker to GSM module without this Audio Amplifier.



Programming Explanation:

Programming part of this Raspberry Pi Mobile Phone is a little complex for beginners. We are using Python language here for the Program. If you are a beginner in Raspberry Pi, you should check our previous tutorials for Getting Started with Raspberry Pi and Installing & Configuring Raspbian Jessie OS in Pi.

In this code, we have created def keypad(): function for interfacing simple keypad for entering numbers. And for entering alphabets, we have created def alphaKeypad(): so that same keypad can be used to enter the alphabets as well. Now we have made this keypad multi functioning same as Arduino keypad library. By using this keypad we can enter characters and integer by using only 10 keys.

Like if we press key 2 (abc2), it will show ‘a’ and if we presses it again then it will replace ‘a’ to ‘b’ and if again we press three times then it will show ‘c’ at same place in LCD. If we wait for some time after pressing key, cursor will automatic move to next position in LCD. Now we can enter next char or number. The same procedure is applied for other keys.

def keypad():
   for j in range(4):
     gpio.setup(COL[j], gpio.OUT)
     gpio.output(COL[j], 0)
     ch=0
     for i in range(4):
       if gpio.input(ROW[i])==0:
         ch=MATRIX[i][j]
         return ch
         while (gpio.input(ROW[i]) == 0):
           pass
     gpio.output(COL[j],1)
def alphaKeypad():
    lcdclear()
    setCursor(x,y)
    lcdcmd(0x0f)
    msg=""
    while 1:
        key=0
        count=0
        key=keypad()
        if key == '1':
            ind=0
            maxInd=6
            Key='1'
            getChar(Key, ind, maxInd)
            .... .....
            ..... .....



First of all, in this python script we have included some required libraries and defined pins for LCD, keypad and other components:

import RPi.GPIO as gpio
import serial
import time

msg=""
alpha="1!@.,:?ABC2DEF3GHI4JKL5MNO6PQRS7TUV8WXYZ90 *#"
x=0
y=0

MATRIX = [
            ['1','2','3','A'],
            ['4','5','6','B'],
            ['7','8','9','C'],
            ['*','0','#','D']
         ]
ROW = [21,20,16,12]
COL = [26,19,13,6]
... .....
..... .....



Now it’s time to give direction to the pins:

gpio.setwarnings(False)
gpio.setmode(gpio.BCM)
gpio.setup(RS, gpio.OUT)
gpio.setup(EN, gpio.OUT)
gpio.setup(D4, gpio.OUT)
gpio.setup(D5, gpio.OUT)
gpio.setup(D6, gpio.OUT)
gpio.setup(D7, gpio.OUT)
gpio.setup(led, gpio.OUT)
gpio.setup(buz, gpio.OUT)
gpio.setup(m11, gpio.OUT)
gpio.setup(m12, gpio.OUT)
gpio.setup(button, gpio.IN)
gpio.output(led , 0)
gpio.output(buz , 0)
gpio.output(m11 , 0)
gpio.output(m12 , 0)



Then initialize Serial communication like below:

Serial = serial.Serial("/dev/ttyS0", baudrate=9600, timeout=2)



Now we need to write some function for driving LCD. Function def lcdcmd(ch): is used for sending command to LCD and def lcdwrite(ch): function is used for sending data to LCD. Along with these functions, def lcdclear(): is used to clear the LCD, def setCursor(x,y): is used to set cursor position at the LCD and def lcdprint(Str): is used to print string on LCD.

def lcdcmd(ch):
  gpio.output(RS, 0)
  gpio.output(D4, 0)
  gpio.output(D5, 0)
  gpio.output(D6, 0)
  gpio.output(D7, 0)
  if ch&0x10==0x10:
    gpio.output(D4, 1)
    .... .....
    ..... ....
def lcdwrite(ch):
  gpio.output(RS, 1)
  gpio.output(D4, 0)
  gpio.output(D5, 0)
  gpio.output(D6, 0)
  gpio.output(D7, 0)
  if ch&0x10==0x10:
    gpio.output(D4, 1)
  if ch&0x20==0x20:
    gpio.output(D5, 1)
    .... .....
    ..... ....
def lcdclear():
  lcdcmd(0x01)

def lcdprint(Str):
  l=0;
  l=len(Str)
  for i in range(l):
    lcdwrite(ord(Str[i]))
def setCursor(x,y):
    if y == 0:
        n=128+x
    elif y == 1:
        n=192+x
    lcdcmd(n)



After this we need to write some functions for sending SMS, receiving SMS, making a call and attending the call.

Function def call(): is used for making the call. And function def receiveCall(data): is used to showing the incoming message and number on LCD. Finally def attendCall(): is used to attend the call.

Function def sendSMS(): is used to write and send the message with the help of alphaKeypad() function. And function def receiveSMS(data): is used receive and retrieve the location of SMS. Finally def readSMS(index): is used to display the message on LCD.

You can find all the above functions in Code given below.

So this is how you can convert your Raspberry Pi into a mobile phone with help of GSM module. Also check this Raspberry Pi Touch Screen Smart Phone.

Recommended TI Whitepapers

Code

import RPi.GPIO as gpio
import serial
import time

msg=""
#     0      7   11  15  19  23  27   32  36   414244   ROLL45
alpha="1!@.,:?ABC2DEF3GHI4JKL5MNO6PQRS7TUV8WXYZ90 *#"
x=0
y=0

MATRIX = [
            ['1','2','3','A'],
            ['4','5','6','B'],
            ['7','8','9','C'],
            ['*','0','#','D']
         ]
ROW = [21,20,16,12]
COL = [26,19,13,6]

moNum=['0','0','0','0','0','0','0','0','0','0']

m11=17
m12=27
led=5
buz=26

button=19

RS =18
EN =23
D4 =24
D5 =25
D6 =8
D7 =7

HIGH=1
LOW=0

gpio.setwarnings(False)
gpio.setmode(gpio.BCM)
gpio.setup(RS, gpio.OUT)
gpio.setup(EN, gpio.OUT)
gpio.setup(D4, gpio.OUT)
gpio.setup(D5, gpio.OUT)
gpio.setup(D6, gpio.OUT)
gpio.setup(D7, gpio.OUT)
gpio.setup(led, gpio.OUT)
gpio.setup(buz, gpio.OUT)
gpio.setup(m11, gpio.OUT)
gpio.setup(m12, gpio.OUT)
gpio.setup(button, gpio.IN)
gpio.output(led , 0)
gpio.output(buz , 0)
gpio.output(m11 , 0)
gpio.output(m12 , 0)
for j in range(4):
    gpio.setup(COL[j], gpio.OUT)
    gpio.setup(COL[j],1)

for i in range (4):
    gpio.setup(ROW[i],gpio.IN,pull_up_down=gpio.PUD_UP)
Serial = serial.Serial("/dev/ttyS0", baudrate=9600, timeout=2)
data=""

def begin():
  lcdcmd(0x33)
  lcdcmd(0x32)
  lcdcmd(0x06)
  lcdcmd(0x0C)
  lcdcmd(0x28)
  lcdcmd(0x01)
  time.sleep(0.0005)

def lcdcmd(ch):
  gpio.output(RS, 0)
  gpio.output(D4, 0)
  gpio.output(D5, 0)
  gpio.output(D6, 0)
  gpio.output(D7, 0)
  if ch&0x10==0x10:
    gpio.output(D4, 1)
  if ch&0x20==0x20:
    gpio.output(D5, 1)
  if ch&0x40==0x40:
    gpio.output(D6, 1)
  if ch&0x80==0x80:
    gpio.output(D7, 1)
  gpio.output(EN, 1)
  time.sleep(0.005)
  gpio.output(EN, 0)

  # Low bits
  gpio.output(D4, 0)
  gpio.output(D5, 0)
  gpio.output(D6, 0)
  gpio.output(D7, 0)
  if ch&0x01==0x01:
    gpio.output(D4, 1)
  if ch&0x02==0x02:
    gpio.output(D5, 1)
  if ch&0x04==0x04:
    gpio.output(D6, 1)
  if ch&0x08==0x08:
    gpio.output(D7, 1)
  gpio.output(EN, 1)
  time.sleep(0.005)
  gpio.output(EN, 0)

def lcdwrite(ch):
  gpio.output(RS, 1)
  gpio.output(D4, 0)
  gpio.output(D5, 0)
  gpio.output(D6, 0)
  gpio.output(D7, 0)
  if ch&0x10==0x10:
    gpio.output(D4, 1)
  if ch&0x20==0x20:
    gpio.output(D5, 1)
  if ch&0x40==0x40:
    gpio.output(D6, 1)
  if ch&0x80==0x80:
    gpio.output(D7, 1)
  gpio.output(EN, 1)
  time.sleep(0.005)
  gpio.output(EN, 0)

  # Low bits
  gpio.output(D4, 0)
  gpio.output(D5, 0)
  gpio.output(D6, 0)
  gpio.output(D7, 0)
  if ch&0x01==0x01:
    gpio.output(D4, 1)
  if ch&0x02==0x02:
    gpio.output(D5, 1)
  if ch&0x04==0x04:
    gpio.output(D6, 1)
  if ch&0x08==0x08:
    gpio.output(D7, 1)
  gpio.output(EN, 1)
  time.sleep(0.005)
  gpio.output(EN, 0)

def lcdclear():
  lcdcmd(0x01)

def lcdprint(Str):
  l=0;
  l=len(Str)
  for i in range(l):
    lcdwrite(ord(Str[i]))
def setCursor(x,y):
    if y == 0:
        n=128+x
    elif y == 1:
        n=192+x
    lcdcmd(n)

def keypad():
   for j in range(4):
     gpio.setup(COL[j], gpio.OUT)
     gpio.output(COL[j], 0)
     ch=0
     for i in range(4):
       if gpio.input(ROW[i])==0:
         ch=MATRIX[i][j]
         #lcdwrite(ord(ch))
        # print "Key Pressed:",ch
        # time.sleep(2)
         return ch
         while (gpio.input(ROW[i]) == 0):
           pass
     gpio.output(COL[j],1)
    # callNum[n]=ch

def serialEvent():
    data = Serial.read(20)
    #if data != '\0':
    print data
    data=""

def gsmInit():
    lcdclear()
    lcdprint("Finding Module");
    time.sleep(1)
    while 1:
        data=""
        Serial.write("AT\r");
        data=Serial.read(10)
        print data
        r=data.find("OK")
        if r>=0:
            break
        time.sleep(0.5)

    while 1:
        data=""
        Serial.write("AT+CLIP=1\r");
        data=Serial.read(10)
        print data
        r=data.find("OK")
        if r>=0:
            break
        time.sleep(0.5)

    lcdclear()
    lcdprint("Finding Network")
    time.sleep(1)
    while 1:
        data=""
        Serial.flush()
        Serial.write("AT+CPIN?\r");
        data=Serial.read(30)
        print data
        r=data.find("READY")
        if r>=0:
            break
        time.sleep(0.5)

    lcdclear()
    lcdprint("Finding Operator")
    time.sleep(1)
    while 1:
        data=""
        Serial.flush()
        Serial.read(20)
        Serial.write("AT+COPS?\r");
        data=Serial.read(40)
        #print data
        r=data.find("+COPS:")
        if r>=0:
            l1=data.find(",\"")+2
            l2=data.find("\"\r")
            operator=data[l1:l2]
            lcdclear()
            lcdprint(operator)
            time.sleep(3)
            print operator
            break;
        time.sleep(0.5)
    Serial.write("AT+CMGF=1\r");
    time.sleep(0.5)
   # Serial.write("AT+CNMI=2,2,0,0,0\r");
   # time.sleep(0.5)
    Serial.write("AT+CSMP=17,167,0,0\r");
    time.sleep(0.5)

def receiveCall(data):
        inNumber=""
        r=data.find("+CLIP:")
        if r>0:
            inNumber=""
            inNumber=data[r+8:r+21]
            lcdclear()
            lcdprint("incoming")
            setCursor(0,1)
            lcdprint(inNumber)
            time.sleep(1)
            return 1

def receiveSMS(data):
    print data
    r=data.find("\",")
    print r

    if r>0:
        if data[r+4] == "\r":
            smsNum=data[r+2:r+4]
        elif data[r+3] == "\r":
            smsNum=data[r+2]
        elif data[r+5] == "\r":
            smsNum=data[r+2:r+5]
        else:
            print "else"
        print smsNum
        if r>0:

            lcdclear()
            lcdprint("SMS Received")
            setCursor(0,1)
            lcdprint("Press Button B")
            print "AT+CMGR="+smsNum+"\r"
            time.sleep(2)
            return str(smsNum)
    else:
        return 0

def attendCall():
    print "Attend call"
    Serial.write("ATA\r")
    data=""
    data=Serial.read(10)
    l=data.find("OK")
    if l>=0:
        lcdclear()
        lcdprint("Call attended")
        time.sleep(2)
        flag=-1;
        while flag<0:
            data=Serial.read(12);
            print data
            flag=data.find("NO CARRIER")
            #flag=data.find("BUSY")
            print flag
        lcdclear()
        lcdprint("Call Ended")
        time.sleep(1)
        lcdclear()

def readSMS(index):
                print index
                Serial.write("AT+CMGR="+index+"\r")
                data=""
                data=Serial.read(200)
                print data
                r=data.find("OK")
                if r>=0:
                    r1=data.find("\"\r\n")
                    msg=""
                    msg=data[r1+3:r-4]
                    lcdclear()
                    lcdprint(msg)
                    print msg
                    time.sleep(5)
                    lcdclear();
                    smsFlag=0
                    print "Receive SMS"

def getChar(Key, ind, maxInd):
            ch=0
            ch=ind
            lcdcmd(0x0e)
            Char=''
            count=0
            global msg
            global x
            global y
            while count<20:
                key=keypad()
                print key
                if key== Key:
                    setCursor(x,y)
                    Char=alpha[ch]
                    lcdwrite(ord(Char))
                    ch=ch+1
                    if ch>maxInd:
                        ch=ind
                    count=0
                count=count+1
                time.sleep(0.1)
            msg+=Char
            x=x+1
            if x>15:
                x=0
                y=1
            lcdcmd(0x0f)

def alphaKeypad():
    lcdclear()
    setCursor(x,y)
    lcdcmd(0x0f)
    msg=""
    while 1:
        key=0
        count=0
        key=keypad()
        if key == '1':
            ind=0
            maxInd=6
            Key='1'
            getChar(Key, ind, maxInd)

        elif key == '2':
            ind=7
            maxInd=10
            Key='2'
            getChar(Key, ind, maxInd)

        elif key == '3':
            ind=11
            maxInd=14
            Key='3'
            getChar(Key, ind, maxInd)

        elif key == '4':
            ind=15
            maxInd=18
            Key='4'
            getChar(Key, ind, maxInd)

        elif key == '5':
            ind=19
            maxInd=22
            Key='5'
            getChar(Key, ind, maxInd)

        elif key == '6':
            ind=23
            maxInd=26
            Key='6'
            getChar(Key, ind, maxInd)

        elif key == '7':
            ind=27
            maxInd=31
            Key='7'
            getChar(Key, ind, maxInd)

        elif key == '8':
            ind=32
            maxInd=35
            Key='8'
            getChar(Key, ind, maxInd)

        elif key == '9':
            ind=36
            maxInd=40
            Key='9'
            getChar(Key, ind, maxInd)

        elif key == '0':
            ind=41
            maxInd=42
            Key='0'
            getChar(Key, ind, maxInd)

        elif key == '*':
            ind=43
            maxInd=43
            Key='*'
            getChar(Key, ind, maxInd)

        elif key == '#':
            ind=44
            maxInd=44
            Key='#'
            getChar(Key, ind, maxInd)

        elif key== 'D':
            return

def sendSMS():
    print"Sending sms"
    lcdclear()
    lcdprint("Enter Number:")
    setCursor(0,1)
    time.sleep(2)
    moNum=""
    while 1:
        key=0;
        key=keypad()
        #print key
        if key>0:
            if key == 'A'  or key== 'B' or key== 'C':
                print key
                return
            elif key == 'D':
                print key
                print moNum
                Serial.write("AT+CMGF=1\r")
                time.sleep(1)
                Serial.write("AT+CMGS=\"+91"+moNum+"\"\r")
                time.sleep(2)
                data=""
                data=Serial.read(60)
                print data
                alphaKeypad()
                print msg
                lcdclear()
                lcdprint("Sending.....")
                Serial.write(msg)
                time.sleep(1)
                Serial.write("\x1A")
                while 1:
                    data=""
                    data=Serial.read(40)
                    print data
                    l=data.find("+CMGS:")
                    if l>=0:
                        lcdclear()
                        lcdprint("SMS Sent.")
                        time.sleep(2)
                        return;

                    l=data.find("Error")
                    if l>=0:
                        lcdclear()
                        lcdprint("Error")
                        time.sleep(1)
                        return
            else:
                print key
                moNum+=key
                lcdwrite(ord(key))
                time.sleep(0.5)

def call():
    print "Call"
    n=0
    moNum=""
    lcdclear()
    lcdprint("Enter Number:")
    setCursor(0,1)
    time.sleep(2)
    while 1:
        key=0;
        key=keypad()
        #print key
        if key>0:
            if key == 'A'  or key== 'B' or key== 'D':
                print key
                return
            elif key == 'C':
                print key
                print moNum
                Serial.write("ATD+91"+moNum+";\r")
                data=""
                time.sleep(2)
                data=Serial.read(30)
                l=data.find("OK")
                if l>=0:
                    lcdclear()
                    lcdprint("Calling.....")
                    setCursor(0,1)
                    lcdprint("+91"+moNum)
                    time.sleep(30)
                    lcdclear()
                    return
                #l=data.find("Error")
                #if l>=0:
                else:
                    lcdclear()
                    lcdprint("Error")
                    time.sleep(1)
                    return
            else:
                print key
                moNum+=key
                lcdwrite(ord(key))
                n=n+1
                time.sleep(0.5)

begin()
lcdcmd(0x01)
lcdprint("  Mobile Phone  ")
lcdcmd(0xc0)
lcdprint("    Using RPI     ")
time.sleep(3)
lcdcmd(0x01)
lcdprint("Circuit Digest")
lcdcmd(0xc0)
lcdprint("Welcomes you")
time.sleep(3)
gsmInit()
smsFlag=0
index=""

while 1:

    key=0
    key=keypad()
    print key
    if key == 'A':
      attendCall()
    elif key == 'B':
      readSMS(index)
      smsFlag=0
    elif key == 'C':
      call()
    elif key == 'D':
      sendSMS()

    data=""
    Serial.flush()
    data=Serial.read(150)
    print data
    l=data.find("RING")
    if l>=0:
      callstr=data
      receiveCall(data)
    l=data.find("\"SM\"")
    if l>=0:
      smsstr=data
      smsIndex=""
      (smsIndex)=receiveSMS(smsstr)
      print smsIndex
      if smsIndex>0:
          smsFlag=1
          index=smsIndex
    if smsFlag == 1:
        lcdclear()
        lcdprint("New Message")
        time.sleep(1)

    setCursor(0,0)
    lcdprint("C--> Call <--A");
    setCursor(0,1);
    lcdprint("D--> SMS  <--B")

Video

Get Our Weekly Newsletter!

Subscribe below to receive most popular news, articles and DIY projects from Circuit Digest

Comments

  • Aysha 's picture
    Aysha
    Mar 20, 2017

    Hello. I am final sem student in Mechatronics and I was planning to do a similar project for my final year. I wanted to to know if the GSM CAN AUTO-CALL a cell phone with a warning from a sensor?

  • mufaddal's picture
    mufaddal
    Apr 16, 2017

    hello sir kindly tell ho to run this code iam a new user of raspi

  • ezzat's picture
    ezzat
    Jun 30, 2017

    DID u know how to run the code? pls help

  • Shishira M S's picture
    Shishira M S
    Jun 04, 2017

    Instead of mic and speaker can we have an Android application that is connected to gsm module?

  • aztech's picture
    aztech
    Jul 20, 2017

    Hello. I am final sem student in Mechatronics and I was planning to do a similar project for my final year. I wanted to to know if the GSM CAN AUTO-CALL a cell phone with a warning from a sensor?

  • MAZ's picture
    MAZ
    Nov 15, 2017

    i am a beginner
    i have a question !
    What does "Serial.flush ()" ?

    i check the site daily and waiting for the answer to my question

    thanks you and your site for some interesting training

  • Darren's picture
    Darren
    Feb 21, 2018

    Hello Sir,
    I’m a student and want to know if you are willing to write some code for my raspberry pi using a gsm module to send images and video using a camera module.

    Please reply and I can send you more details
    Willing to pay for your time

    Regards

    Darren

  • Jomel Barraquio's picture
    Jomel Barraquio
    Mar 01, 2018

    Hello,
    is this still possible if I replace the keypad into touch screen and make some GUI?
    Thank you in advance.

  • kashish's picture
    kashish
    Jul 04, 2018

    sir,
    im receiving error in gsminit() as unicode 'str'
    so in order to encode it i am using encode(utf-8) command with it in serial.write
    now my lcd is not showing anything after finding module

  • Tim330i's picture
    Tim330i
    Jan 09, 2019

    Would it be possible to have the RPi listen to the audio stream for DTMF tones, from a cell phone button press (#* 0-9) and take action based on those tones?

Log in or register to post Comment
