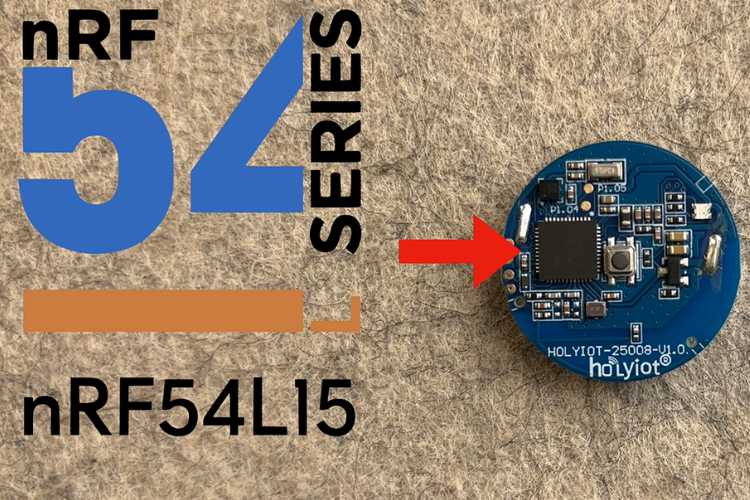

A tiny smart button measuring just 32 millimeters in diameter is demonstrating how modern IoT hardware can deliver powerful functionality in a miniature package. At its core is the Nordic nRF54L15 chipset, a next-generation wireless microcontroller designed for ultra-low-power embedded applications. The board supports Bluetooth Low Energy and Matter over Thread, enabling reliable communication with compatible smart home ecosystems while maintaining minimal energy consumption. Powered by a standard CR2032 coin-cell battery, the device integrates all essential components into a single compact PCB, making it suitable for portable and battery-operated automation projects.
The hardware also includes an onboard LIS2DH12 three-axis accelerometer that continuously measures motion and orientation. This sensor allows the button to detect rotational movement, enabling gesture-based brightness control for connected smart lights. In addition to motion sensing, a single button press can trigger predefined automations, switch appliances on or off, or send commands to Matter-compatible devices across a Thread network. The firmware is optimized to activate the accelerometer only when required, preventing unnecessary power usage and significantly extending battery life. This event-driven architecture combines GPIO interrupts, low-power sleep states, and intelligent wake-up logic to balance responsiveness with energy efficiency.
One of the most impressive engineering achievements is its extremely low sleep current of only a few microamps. By disabling unused peripherals and placing both the processor and sensors into low-power modes, the smart button can operate for multiple years on a single battery under typical usage conditions. Despite lacking a USB interface, firmware can be programmed through dedicated SWD pads using an external CMSIS-DAP programmer or Raspberry Pi Pico. The combination of Matter over Thread connectivity, gesture recognition through the LIS2DH12 accelerometer, ultra-low-power firmware optimization, and the high-performance nRF54L15 chipset makes this miniature device a compelling example of modern embedded systems engineering.
