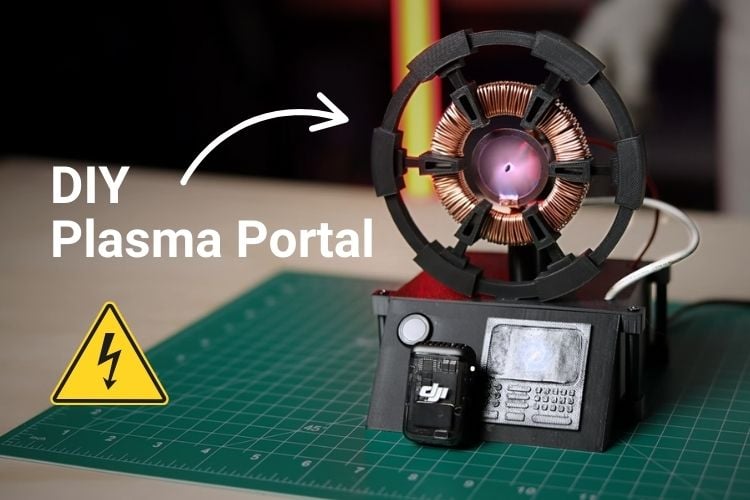

A YouTuber has shared his Plasma Portal project, a high-voltage electrical engineering demonstration that combines a Zero Voltage Switching (ZVS) driver circuit, a custom flyback transformer, and a 3D-printed frame to generate plasma arcs. The ZVS circuit, built using IRFP260 MOSFETs, resistors, diodes, and capacitors, efficiently oscillates current through the flyback transformer to produce high-voltage arcs. Key components include two 12V Zener diodes, two 10 kΩ resistors, and two 33 µF MKP capacitors, ensuring stable operation and minimal heat generation.
The flyback transformer is custom-wound with copper wire to achieve the necessary inductance for plasma generation. Its AC output is rectified to DC using a high-voltage microwave diode, as DC is easier to control with the magnetic field created by the setup. A copper discharge ring and a magnet, wrapped with copper wire for heat dissipation, help shape and stabilize the plasma arc. The copper wrapping acts as a heat sink, preventing overheating during operation.
The project’s frame is 3D-printed, providing a lightweight yet durable housing for the electrical components. The design includes a lid for protection and a portal frame to hold the magnet and copper ring. Powered by a 31V input, the setup generates stable plasma arcs, with heat sinks on the MOSFETs ensuring prolonged operation without overheating. However, excessive heat might affect the 3D-printed structure, so be mindful of the runtime.
The Plasma Portal project is a fun and exciting way to explore high-voltage electronics and plasma physics. It’s an excellent introduction to circuit building and working with electrical components for beginners. For innovators, it offers a chance to experiment and create something unique. Whether you’re just starting out or looking for a new challenge, this project is a perfect mix of creativity and science. Give it a try, you might just spark your next big idea!
