High-Side Switch Controller with Flexible Diagnostics and Intelligent Fuse Protection for Automotive Applications

Published  July 14, 2022   0
High-Side Switch Controller

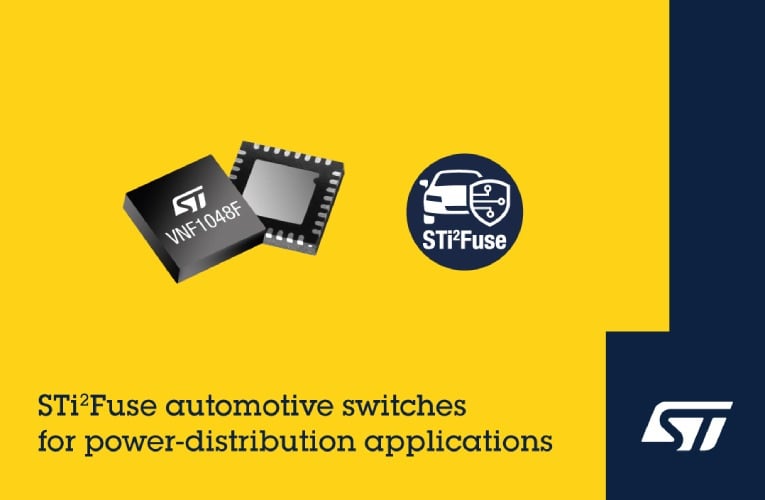

STMicroelectronics has revealed a new automotive high-side switch controller VNF1048F that combines enhanced system-protection and diagnostic features with ST’s I2-t silicon-fuse technology. This new controller is compatible with 12V, 24V, and 48V automotive power subsystems and is ideal for the latest automotive zonal electronic/electrical (E/E) architectures that boost efficiency and reliability while supporting increased electrification and extra functions for smart driving.

This controller has a serial peripheral interface (SPI) for a host microcontroller to configure and monitor system-protection and diagnostic features. These include under-voltage and over-temperature protection, thermal protection for the external high-side MOSFET, desaturation shutdown, and I2-t fuse settings. Moreover, Analog-to-digital converters (ADCs) for monitoring the temperature-sensing thermistor voltage, output voltage, and MOSFET drain-source voltage are also integrated.

ST’s I2-t fuse provides superior fast-acting, resettable, and reliable over-current protection. Silicon fuses also help simplify vehicle wiring harnesses and reduce weight by eliminating user-accessible fuse boxes and the associated cabling and installation overheads.

Key Features of VNF1048F Controller

  • High side switch Control IC with e-fuse protection for Automotive 12 V, 24 V and 48 V applications

  • SPI slave interface for host control

  • 32-bit ST-SPI interface compatible with 3.3 V and 5 V CMOS level

  • 2 stage charge pump

  • Gate drive for an external MOSFET in high side configuration

  • Battery under-voltage shut-down

  • External MOSFET desaturation shutdown configurable via SPI

  • Hard short circuit latch-off configurable via SPI

  • Current vs time latch-off configurable via SPI (fuse-emulation)

The VNF1048FTR controller is in production now and available in the QFN 32L 5mm x 5mm 32-lead package, from $1.77 for orders of 1000 pieces.
