Smart Home Automation Using ALEXA and GOOGLE ASSISTANT with NODE MCU ESP8266 MODULE
2881 18
Chirukesh Devabhathini

Smart Home Automation Using ALEXA and GOOGLE ASSISTANT with NODE MCU ESP8266 MODULE

In this IoT projects, I have shown you how to make the smart home with Google Assistant & Alexa...

Description:-

In this IoT projects, I have shown you how to make the smart home with Google Assistant & Alexa using NodeMCU ESP8266 to control relays with voice commands and manual switches. I have used all the free tools for this IoT-based home automation system. This project is very useful to unabled, because unabelled people can't go to turn on the lights, fan and turn off lights, fans.So, they can easily turn on and off the there home appliances using GOOGLE ASSISTANT AND AMAZON ALEXA.

Project Used Hardware

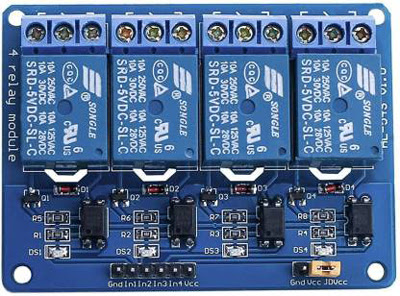

Home Automation Hardware

ESP8266 MODULE, 4 CHANNEL RELAY MODULE, WIRES

Project Used Software

Arduino IDE, SINRIC PRO

Project Hardware Software Selection

Smart Home Automation Device

HARDWARE SELECTION:- 1.ESP8266:-NodeMCU ESP8266 is an open-source Lua based firmware and development board specially targeted for IoT based applications. It includes firmware that runs on the ESP8266 Wi-Fi SoC from Espressif Systems and hardware which is based on the ESP-12 module, and like this, it can also be programmed using Arduino IDE and can act as both WiFi Hotspot or can connect to one. It has one Analog Input Pin, 16 Digital I/O pins along with the capability to connect with serial communication protocols like SPI, UART, and I2C. NodeMCU has 128 KB RAM and 4MB of Flash memory to store data and programs. Its high processing power with in-built Wi-Fi / Bluetooth and Deep Sleep Operating features make it ideal for IoT projects. Its applications include prototyping for IoT devices, low powered battery-operated applications, and projects requiring I/O interface with Bluetooth and WiFi capabilities. 2.RELAY MODULE:-Relays are important part of any electrical and electronic circuits. We use relays in control applications, switching applications, circuit protection applications, and load transfer applications. Relays are also used to provide electrical isolation between two circuits. This 4-channel Relay module comes with Optocoupler protection is an active low relay module which means that the relay will conduct when the input signal falls below 2V and if it is above 2V then the relay is turned off you can also make it an active module by changing the jumper position on the power module. It can be controlled directly with both 3.3V and 5V microcontrollers easily. You can use it to control both DC and AC lines and it also has LED indicators to indicate the state of operation of the module. It also has high Impedance input pin so not to draw any more current than required from the controller. SOFTWARE SELECTION:- 1.ARDUINO IDE:-The Arduino Integrated Development Environment - or Arduino Software (IDE) - contains a text editor for writing code, a message area, a text console, a toolbar with buttons for common functions, and a series of menus. It connects to the Arduino and Genuino hardware to admin/upload programs and communicate with them. 2.SINRIC PRO:-Simple way to control your IOT development boards like RaspberryPi, ESP8226, ESP32, or Arduino with Amazon Alexa, Google Home, or SmartThings.

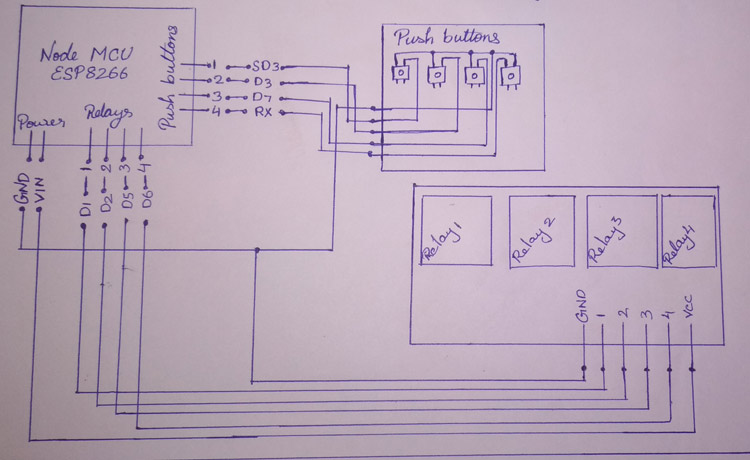

Circuit Diagram

Home Automation Circuit Diagram

CONNECT ALL THE CONNECTIONS AS PER THIS CIRCUIT, TO SET UP THE ALEXA AND GOOGLE ASSISTANT WATCH OUR VIDEO, IT MAY VERY USE FULL TO YOU, VIDEO LINK IS GIVEN.

Code

/*********************************************************************************
 *  TITLE: Google + Alexa + Manual Switch/Button control 4 Relays using NodeMCU & Sinric Pro (Real time feedback)
 *  (flipSwitch can be a tactile button or a toggle switch) (code taken from Sinric Pro examples then modified)
 *  Click on the following links to learn more.
 *  YouTube Video: https://youtu.be/xOklbRctBn4
 *  Preferences--> Aditional boards Manager URLs :
 *  https://dl.espressif.com/dl/package_esp32_index.json, http://arduino.esp8266.com/stable/package_esp8266com_index.json
 *
 *  Download Board ESP8266 NodeMCU : https://github.com/esp8266/Arduino
 *  Download the libraries
 *  ArduinoJson Library: https://github.com/bblanchon/ArduinoJson
 *  arduinoWebSockets Library: https://github.com/Links2004/arduinoWebSockets
 *  SinricPro Library: https://sinricpro.github.io/esp8266-esp32-sdk/
 **********************************************************************************/
// Uncomment the following line to enable serial debug output
//#define ENABLE_DEBUG
#ifdef ENABLE_DEBUG
       #define DEBUG_ESP_PORT Serial
       #define NODEBUG_WEBSOCKETS
       #define NDEBUG
#endif
#include <Arduino.h>
#include <ESP8266WiFi.h>
#include "SinricPro.h"
#include "SinricProSwitch.h"
#include <map>
#define WIFI_SSID         "YOUR-WIFI-NAME"
#define WIFI_PASS         "YOUR-WIFI-PASSWORD"
#define APP_KEY           "YOUR-APP-KEY"      // Should look like "de0bxxxx-1x3x-4x3x-ax2x-5dabxxxxxxxx"
#define APP_SECRET        "YOUR-APP-SECRET"   // Should look like "5f36xxxx-x3x7-4x3x-xexe-e86724a9xxxx-4c4axxxx-3x3x-x5xe-x9x3-333d65xxxxxx"
//Enter the device IDs here
#define device_ID_1   "xxxxxxxxxxxxxxxxxxxxxxxx"
#define device_ID_2   "60764ab82fb4f14a3bedebfc"
#define device_ID_3   "60764ac948ccc14a4674c049"
#define device_ID_4   "60764aa148ccc14a4674c047"
// define the GPIO connected with Relays and switches
#define RelayPin1 5  //D1
#define RelayPin2 4  //D2
#define RelayPin3 14 //D5
#define RelayPin4 12 //D6
#define SwitchPin1 10  //SD3
#define SwitchPin2 0   //D3
#define SwitchPin3 13  //D7
#define SwitchPin4 3   //RX
#define wifiLed   16   //D0
// comment the following line if you use a toggle switches instead of tactile buttons
//#define TACTILE_BUTTON 1
#define BAUD_RATE   9600
#define DEBOUNCE_TIME 250
typedef struct {      // struct for the std::map below
  int relayPIN;
  int flipSwitchPIN;
} deviceConfig_t;
// this is the main configuration
// please put in your deviceId, the PIN for Relay and PIN for flipSwitch
// this can be up to N devices...depending on how much pin's available on your device ;)
// right now we have 4 devicesIds going to 4 relays and 4 flip switches to switch the relay manually
std::map<String, deviceConfig_t> devices = {
    //{deviceId, {relayPIN,  flipSwitchPIN}}
    {device_ID_1, {  RelayPin1, SwitchPin1 }},
    {device_ID_2, {  RelayPin2, SwitchPin2 }},
    {device_ID_3, {  RelayPin3, SwitchPin3 }},
    {device_ID_4, {  RelayPin4, SwitchPin4 }}
};
typedef struct {      // struct for the std::map below
  String deviceId;
  bool lastFlipSwitchState;
  unsigned long lastFlipSwitchChange;
} flipSwitchConfig_t;
std::map<int, flipSwitchConfig_t> flipSwitches;    // this map is used to map flipSwitch PINs to deviceId and handling debounce and last flipSwitch state checks
                                                  // it will be setup in "setupFlipSwitches" function, using informations from devices map
void setupRelays() {
  for (auto &device : devices) {           // for each device (relay, flipSwitch combination)
    int relayPIN = device.second.relayPIN; // get the relay pin
    pinMode(relayPIN, OUTPUT);             // set relay pin to OUTPUT
    digitalWrite(relayPIN, HIGH);
  }
}
void setupFlipSwitches() {
  for (auto &device : devices)  {                     // for each device (relay / flipSwitch combination)
    flipSwitchConfig_t flipSwitchConfig;              // create a new flipSwitch configuration
    flipSwitchConfig.deviceId = device.first;         // set the deviceId
    flipSwitchConfig.lastFlipSwitchChange = 0;        // set debounce time
    flipSwitchConfig.lastFlipSwitchState = true;     // set lastFlipSwitchState to false (LOW)--
    int flipSwitchPIN = device.second.flipSwitchPIN;  // get the flipSwitchPIN
    flipSwitches[flipSwitchPIN] = flipSwitchConfig;   // save the flipSwitch config to flipSwitches map
    pinMode(flipSwitchPIN, INPUT_PULLUP);                   // set the flipSwitch pin to INPUT
  }
}
bool onPowerState(String deviceId, bool &state)
{
  Serial.printf("%s: %s\r\n", deviceId.c_str(), state ? "on" : "off");
  int relayPIN = devices[deviceId].relayPIN; // get the relay pin for corresponding device
  digitalWrite(relayPIN, !state);             // set the new relay state
  return true;
}
void handleFlipSwitches() {
  unsigned long actualMillis = millis();                                          // get actual millis
  for (auto &flipSwitch : flipSwitches) {                                         // for each flipSwitch in flipSwitches map
    unsigned long lastFlipSwitchChange = flipSwitch.second.lastFlipSwitchChange;  // get the timestamp when flipSwitch was pressed last time (used to debounce / limit events)
    if (actualMillis - lastFlipSwitchChange > DEBOUNCE_TIME) {                    // if time is > debounce time...
      int flipSwitchPIN = flipSwitch.first;                                       // get the flipSwitch pin from configuration
      bool lastFlipSwitchState = flipSwitch.second.lastFlipSwitchState;           // get the lastFlipSwitchState
      bool flipSwitchState = digitalRead(flipSwitchPIN);                          // read the current flipSwitch state
      if (flipSwitchState != lastFlipSwitchState) {                               // if the flipSwitchState has changed...
#ifdef TACTILE_BUTTON
        if (flipSwitchState) {                                                    // if the tactile button is pressed
#endif
          flipSwitch.second.lastFlipSwitchChange = actualMillis;                  // update lastFlipSwitchChange time
          String deviceId = flipSwitch.second.deviceId;                           // get the deviceId from config
          int relayPIN = devices[deviceId].relayPIN;                              // get the relayPIN from config
          bool newRelayState = !digitalRead(relayPIN);                            // set the new relay State
          digitalWrite(relayPIN, newRelayState);                                  // set the trelay to the new state
          SinricProSwitch &mySwitch = SinricPro[deviceId];                        // get Switch device from SinricPro
          mySwitch.sendPowerStateEvent(!newRelayState);                            // send the event
#ifdef TACTILE_BUTTON
        }
#endif
        flipSwitch.second.lastFlipSwitchState = flipSwitchState;                  // update lastFlipSwitchState
      }
    }
  }
}
void setupWiFi()
{
  Serial.printf("\r\n[Wifi]: Connecting");
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  while (WiFi.status() != WL_CONNECTED)
  {
    Serial.printf(".");
    delay(250);
  }
  digitalWrite(wifiLed, LOW);
  Serial.printf("connected!\r\n[WiFi]: IP-Address is %s\r\n", WiFi.localIP().toString().c_str());
}
void setupSinricPro()
{
  for (auto &device : devices)
  {
    const char *deviceId = device.first.c_str();
    SinricProSwitch &mySwitch = SinricPro[deviceId];
    mySwitch.onPowerState(onPowerState);
  }
  SinricPro.begin(APP_KEY, APP_SECRET);
  SinricPro.restoreDeviceStates(true);
}
void setup()
{
  Serial.begin(BAUD_RATE);
  pinMode(wifiLed, OUTPUT);
  digitalWrite(wifiLed, HIGH);
  setupRelays();
  setupFlipSwitches();
  setupWiFi();
  setupSinricPro();
}
void loop()
{
  SinricPro.handle();
  handleFlipSwitches();
}
