Automation Room Temperature Controller without Coding

This project is about saving the current bills and increasing the life span of the motor of the...

Description:-

This project is about saving the current bills and increasing the life span of the motor of the cooler as well as fans. in this project we have used h1209 temperature module sensor. we have set a temperature in the module whenever the temperature goes below 27 degrees the cooler will automatically on. and when the temperature goes below 24 degrees the cooler will closed and fan will be opened. advantages. 1. we can save the electricity. 2. we can increase the life span of the fan and cooler motor. 3. we can get better air according to our needs. 4.budget friendly. 5. easy to make. Everyone can make it. ^. no need for coding automation.

Project Used Hardware

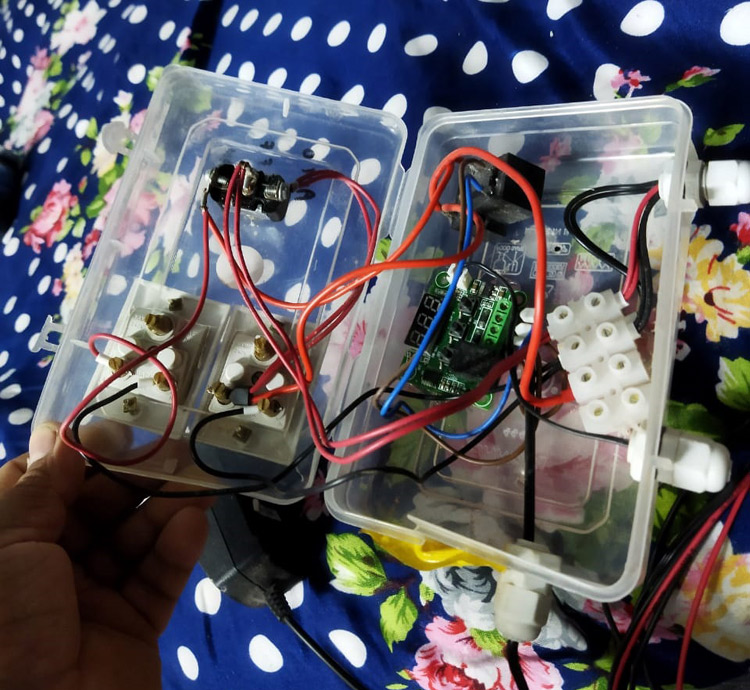

Temperature Controller Hardware

w1209 digital temperature module, relay, toggle switch, cooler, fan, etc

Project Used Software

no software used. very easy to use no need for coding

Project Hardware Software Selection

we have used w1209 temperature module switch and connected it through the relay.

Circuit Diagram

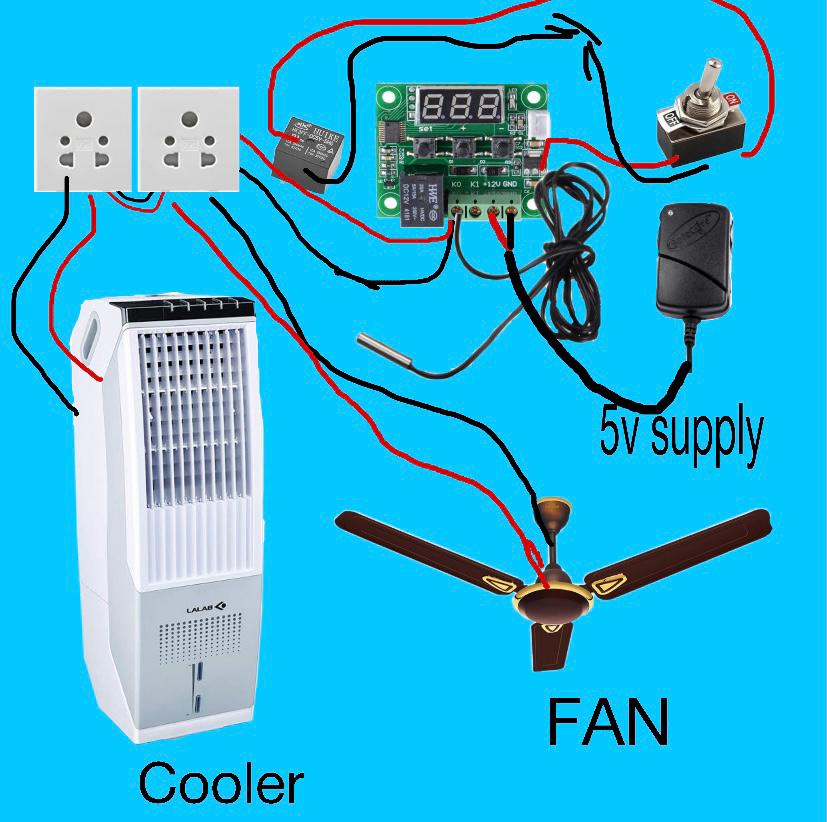

Temperature Controller Circuit Diagram

this is custom made circuit by our self.
